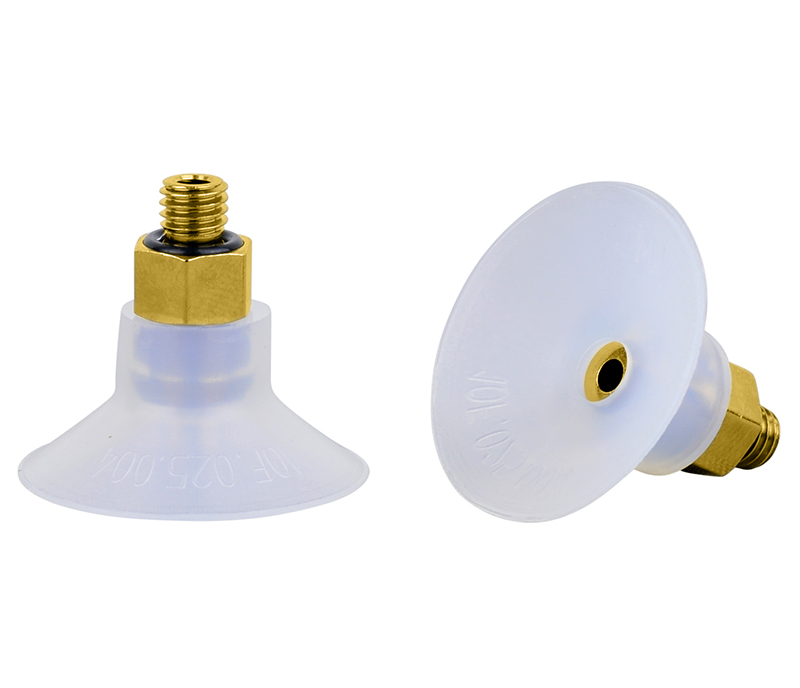

Home > Products > Suction Cups > 10F.025.004.02-1032M Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.025.004.02-1032M - 25 mm flat suction cup, FDA Silicone, with 10-32 ... (Full Description below) Item#: 10F.025.004.02-1032M Price: $5.57 ea. 25 mm flat suction cup, FDA Silicone, with 10-32 male fitting General Specifications Style: Flat Cleats: No Material: Silicone Thread Size: 10-32 male Outside Diameter: 25.0mm Weight(lbs): .0095 Color: Translucent Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10F.025.004.02-1032M    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.91 lbs. 0.45 lbs. 18"Hg 2.73 lbs. 1.36 lbs. 27"Hg 4.10 lbs. 2.05 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10F.025.004.02-1032M Related CAD files of Product Dimensional drawing for Item: 10F.025.004.02-1032M                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.025.004.02-1032M                                Fitting Image for 411.001 Item#: 411.001 compatible with cup #10F.025.004.02-1032M General Specifications Material: Nickel Plated Brass Weight: .0070(lbs) Dimensions: 10-32 Barb Description: 10-32 barb fitting *This fitting is included with the cup(10F.025.004.02-1032M) Dimensional Fitting Drawing for 411.001
