Item: 10F.025.004.09-1032M - 25mm flat HNBR suction cup with 10-32 male fittin... (Full Description below)
| |
Item#: 10F.025.004.09-1032M
Price: $5.83 ea.
|

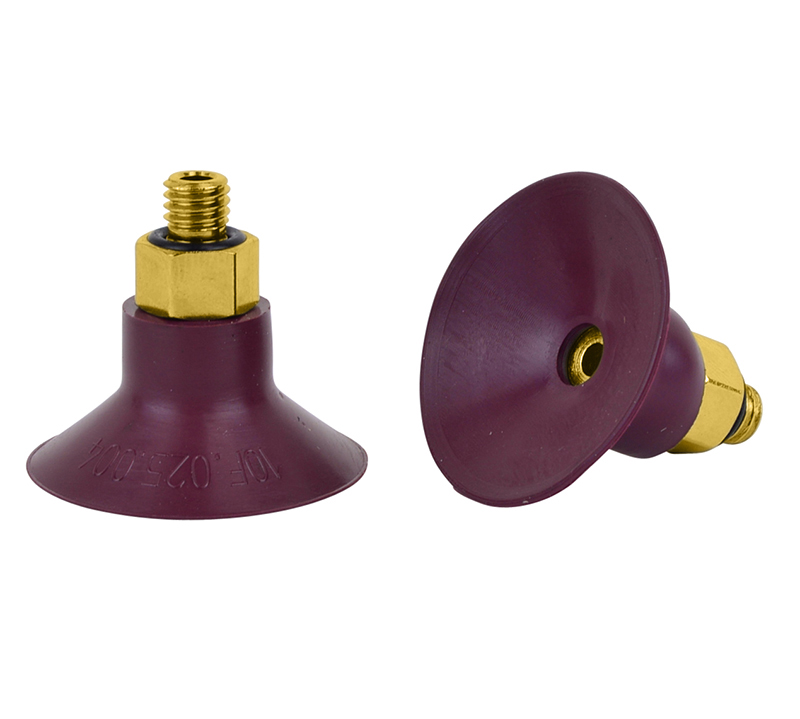

25mm flat HNBR suction cup with 10-32 male fitting
General Specifications
Style: Flat
Cleats: No
Material: HNBR
Thread Size: 10-32 male
Outside Diameter: 25.0mm
Weight(lbs): .0095
Color: Dark Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.025.004.09-1032M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos available for: 10F.025.004.09-1032M
Related CAD files of Product

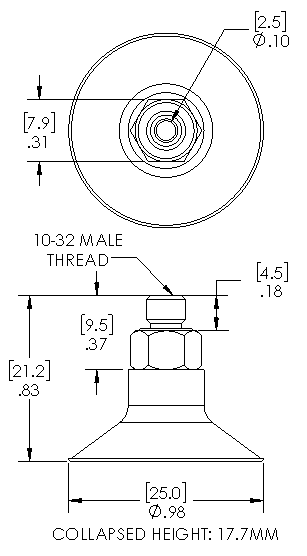

Dimensional drawing for Item: 10F.025.004.09-1032M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.025.004.09-1032M
Fitting Image for 411.001 |
General Specifications
Material: Nickel Plated Brass
Weight: .0070(lbs)
Dimensions: 10-32 Barb
Description: 10-32 barb fitting
*This fitting is included with the cup(10F.025.004.09-1032M)
|
Dimensional Fitting Drawing for 411.001 |
|
|---|
