Item: 080410A - 4mm flat NBR suction cup with M5 male fitting
| |
Item#: 080410A
Price: $12.81 ea.
|
4mm flat NBR suction cup with M5 male fitting
General Specifications
Style: Flat
Cleats: No
Material: NBR
Thread Size: M5 male
Outside Diameter: 4.0mm
Weight(lbs): 0.0088
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 080410A
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.02 lbs. |
0.01 lbs. |
| 18"Hg |
0.07 lbs. |
0.03 lbs. |
| 27"Hg |
0.10 lbs. |
0.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 080410A
Related CAD files of Product
Dimensional drawing for Item: 080410A
Click on the image to enlarge
Parts and accessories for Suction Cup: 080410A

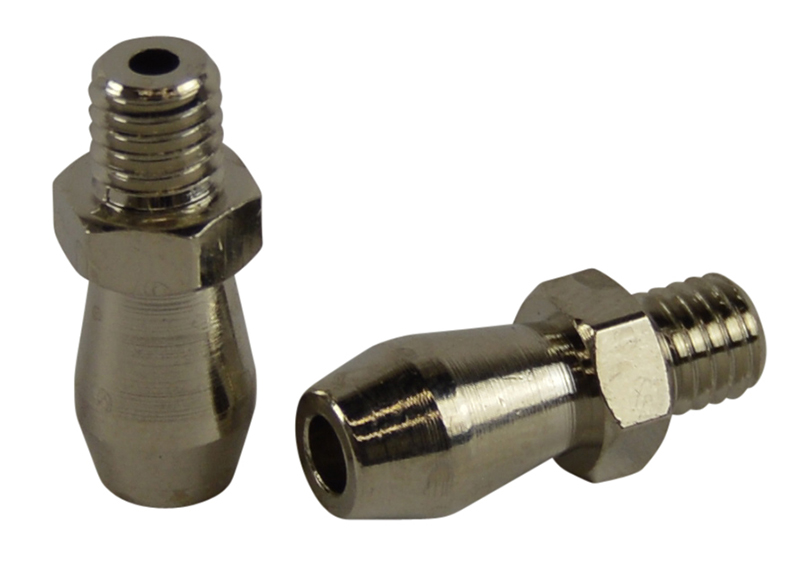

Fitting Image for 00 08 01 |
General Specifications
Material: Nickel Plated Brass
Weight: 0.0045(lbs)
Dimensions: M5 male
Description: M5 male suction cup support
*This fitting is included with the cup(080410A)
|
Dimensional Fitting Drawing for 00 08 01 |
|
|---|
