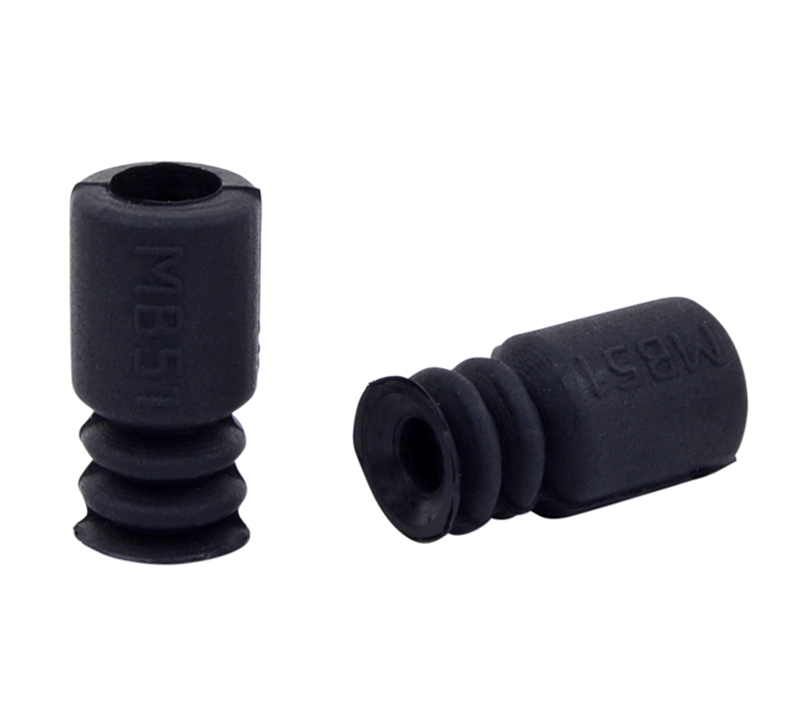

Home > Products > Suction Cups > MB5L-NBR Product DetailsDimensional DrawingParts & Accessories Quantity: Item: MB5L-NBR - 6mm 2.5 bellows NBR suction cup Item#: MB5L-NBR Price: $3.15 ea. 6mm 2.5 bellows NBR suction cup General Specifications Style: Bellows Cleats: No Material: NBR Thread Size: None Bellows: 2.5 Outside Diameter: 6.0mm Weight(lbs): 0.0008 Color: Black Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item MB5L-NBR    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.05 lbs. 0.02 lbs. 18"Hg 0.15 lbs. 0.07 lbs. 27"Hg 0.23 lbs. 0.11 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: VS5NBR, B2.5-5-NBR, FG 5 NBR-55 N017, 10.01.06.00640 , 21.006.093.1, VCC-B-021-N, 220.006.125.01 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos Available for: MB5L-NBR Related CAD files of Product Dimensional drawing for Item: MB5L-NBR                                Click on the image to enlarge Parts and accessories for Suction Cup: MB5L-NBR                                Fitting Image for 130.013C Item#: 130.013C compatible with cup #MB5L-NBR General Specifications Material: Aluminum Weight: .0080(lbs) Dimensions: M5 male Price: $1.83 each Description: M5 male barb suction cup fitting Add to Cart Dimensional Fitting Drawing for 130.013C Fitting Image for 401.026 Item#: 401.026 compatible with cup #MB5L-NBR General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" female Price: $2.21 each Description: G1/8 female barb fitting for series 1 cups Add to Cart Dimensional Fitting Drawing for 401.026 Fitting Image for 401.025 Item#: 401.025 compatible with cup #MB5L-NBR General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: 1/8" female Price: $2.21 each Description: 1/8 NPT female barb fitting for series 1 cups Add to Cart Dimensional Fitting Drawing for 401.025 Fitting Image for 401.002 Item#: 401.002 compatible with cup #MB5L-NBR General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" male Price: $2.21 each Description: G1/8 male barb fitting Add to Cart Dimensional Fitting Drawing for 401.002 Fitting Image for VB18M Item#: VB18M compatible with cup #MB5L-NBR General Specifications Material: Aluminum Weight: .0080(lbs) Dimensions: 1/8" NPT male Price: $2.21 each Description: 1/8 male NPT barb fitting Add to Cart Dimensional Fitting Drawing for VB18M Fitting Image for 411.001 Item#: 411.001 compatible with cup #MB5L-NBR General Specifications Material: Nickel Plated Brass Weight: .0070(lbs) Dimensions: 10-32 Barb Price: $1.89 each Description: 10-32 barb fitting Add to Cart Dimensional Fitting Drawing for 411.001

---
