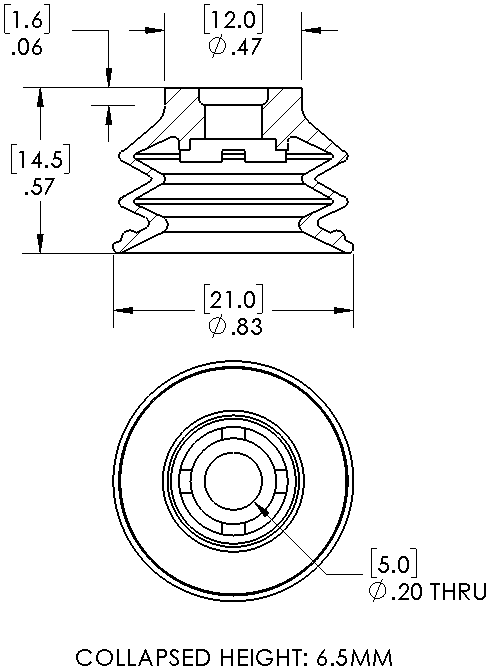

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: MB20P-3060 - 21mm 2.5 bellows dual durometer Polyurethane (30/60) ... (Full Description below)
MB20P-3060


Item#: MB20P-3060
Price: $9.55 ea.

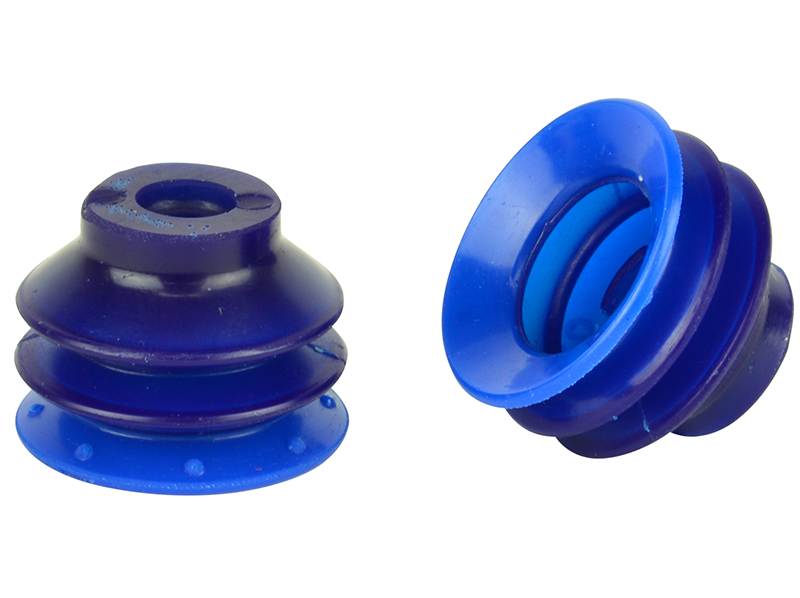

21mm 2.5 bellows dual durometer Polyurethane (30/60) suction cup

General Specifications

Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: None
Bellows: 2.5
Outside Diameter: 21.0mm
Weight(lbs): .0035
Color: Blue
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item MB20P-3060



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.64 lbs. 0.32 lbs.
18"Hg 1.93 lbs. 0.96 lbs.
27"Hg 2.89 lbs. 1.44 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: BX20P.4K, 0118507, 21.021.176.16, GSV BDD 20, 5641


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Polyurethane Excellent Excellent Excellent 50 to 122 °F (10 to 50 °C)
