Item: MB20P-3060-G18M - 21mm 2.5 bellows dual duromether Polyurethane suc... (Full Description below)
|
Item#: MB20P-3060-G18M Price: $14.41 ea.
|

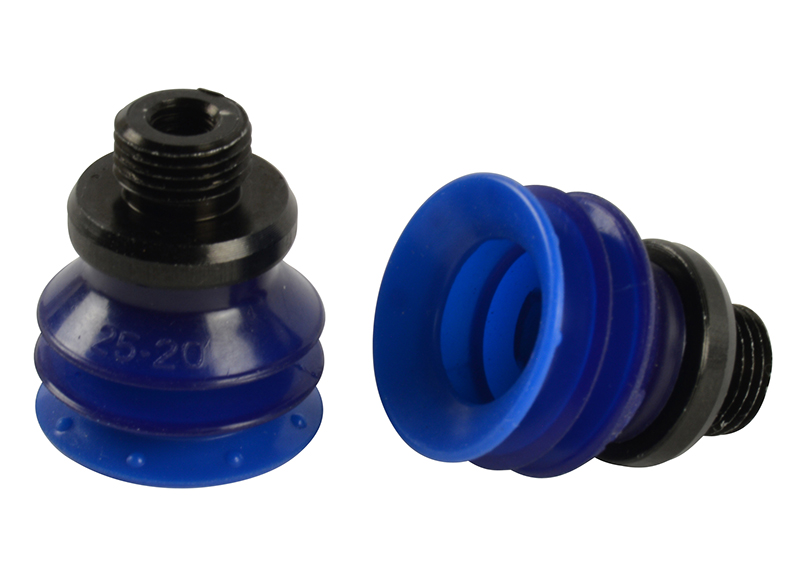

21mm 2.5 bellows dual duromether Polyurethane suction cup with G1/8 male fitting
General Specifications
Style: Bellows Cleats: No Material: Polyurethane Thread Size: 1/8" male Bellows: 2.5 Outside Diameter: 21.0mm Weight(lbs): 0.0112 Color: Blue Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB20P-3060-G18M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.64 lbs. |
0.32 lbs. |
18"Hg |
1.93 lbs. |
0.96 lbs. |
27"Hg |
2.89 lbs. |
1.44 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: BX20P.4K.02AF, 0125105 |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos Available for: MB20P-3060-G18M
No CAD files available for this Product

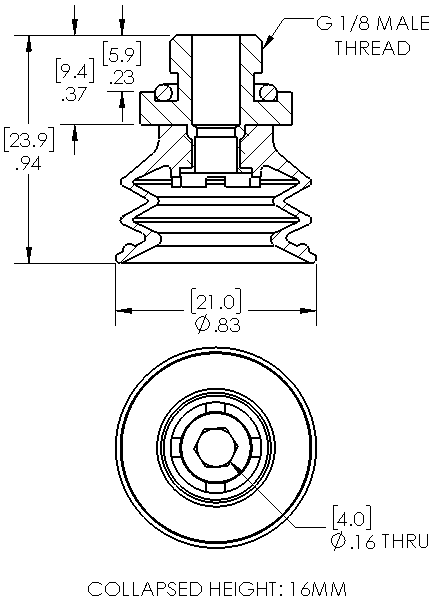

Dimensional drawing for Item: MB20P-3060-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: MB20P-3060-G18M
Fitting Image for 401.003 |
General Specifications
Material: Aluminum
Weight: .0060(lbs)
Dimensions: G1/8" male
Description: G1/8 Male flange/barb fitting, with M5 female, o-ring
*This fitting is included with the cup(MB20P-3060-G18M)
|
Dimensional Fitting Drawing for 401.003 |
|
---|
Fitting Image for 401.011 |
General Specifications
Material: Aluminum
Weight: .0055(lbs)
Dimensions: G1/8" male
Description: G1/8 male fitting with screen for P series 20-30
|
Dimensional Fitting Drawing for 401.011 |
|
---|
