Quantity:
Item: PVF.125-PE - Plastic vacuum filter 1/8 NPT thread, Polypropyle... (Full Description below)
| | Item#: PVF.125-PE
Price: $16.01 ea.
|
Plastic vacuum filter 1/8 NPT thread, Polypropylene body, clear PA bowl, Buna-N gasket, 10 micron Polyethylene filter element.
General Specifications
Filter Type: Plastic housing
Thread Size: 1/8" FNPT
Filter Area In2: 4.9
Max Flow SCFM: 3.0
Weight(lbs): 0.106
 Recommended replacement for: PPSF.125-X10, FLTP-1/8F |
|
|
|
Additional Information
No additional information
Plastic vacuum filter 1/8" FNPT
CAD files for this Product
N/A
Dimensional drawing for Item: PVF.125-PE
Click on the image to enlarge
| Item#: SB-S-CN | Low Profile Series Clear Nylon bowl (gasket sold separately) |
|
General Specifications
Product: Replacement Bowls
Material: Clear Nylon
Dimensions:
Weight lbs.(g): 0.045
Price: $3.43 each
Add to Cart
|

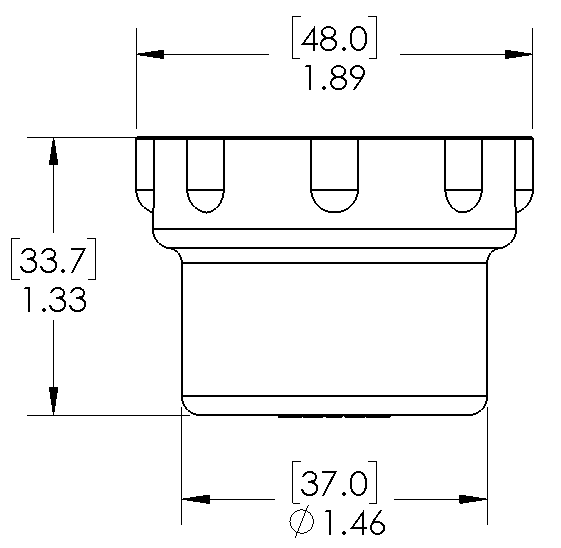

Dimensional Drawing for SB-S-CN |
|
|---|
| Item#: SG-S-B | Low Profile Series Buna gasket - Black. Sold individually. |
|
General Specifications
Product: Replacement Gaskets
Material: Buna
Dimensions:
Weight lbs.(g): 0.001
Price: $0.48 each
Add to Cart
|
Dimensional Drawing for SG-S-B |
|
|---|
| Item#: PE25-3 | 10 micron porous polyethylene replacement filter element (package of 3 pcs.). For use with filter models: PVF.125-PE, PVF.25-PE, PVF.375-PE and all Low Profile Series in line strainers |
|
General Specifications
Product: Filter Elements
Material: Polyethylene (PE)
Dimensions:
Weight lbs.(g): 0.038
Price: $10.49 each
Add to Cart
|

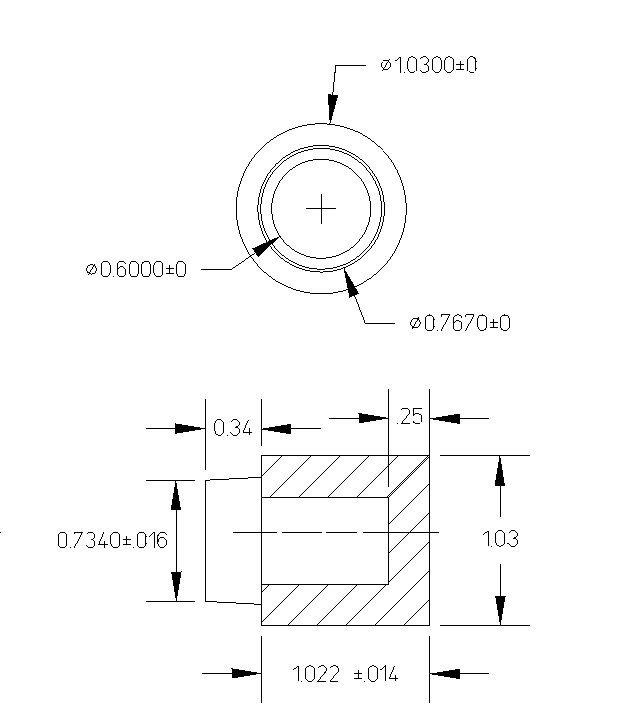

Dimensional Drawing for PE25-3 |
|
|---|
