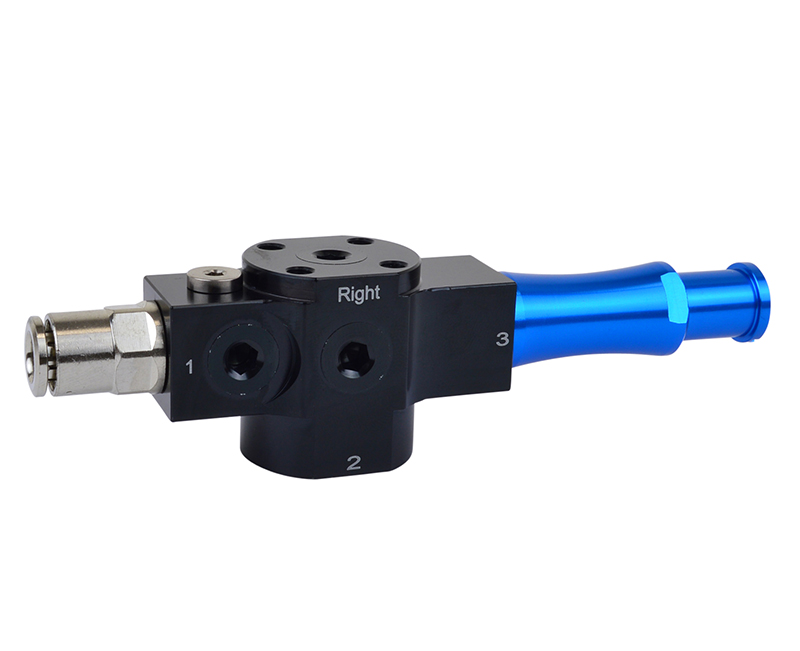

Item: MSVG-68M - Multi-stage vacuum generator. 2.40 SCFM, 22 Hg ... (Full Description below)
| |
Item#: MSVG-68M
Price: $115.50 ea.
|
Multi-stage vacuum generator. 2.40 SCFM, 22 Hg (includes 4x M4 top, flush mount screws)
General Specifications
Vacuum Flow(SCFM): 2.4
Vacuum Port: G3/8"
Supply Port: 6mm tube
Air Consumption: .95
Max Vac -inHg": 22
Weight(lbs)": .1460
|
|
|
|
Additional Information
No additional information available for this item
CAD files for this Product
N/A
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 87 |
22 |
2.40 |
1.48 |
1.27 |
0.85 |
0.46 |
0.36 |
0.30 |
0.22 |
0.00 |
0.00 |
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
|
22.0 |
1.42 |
5.38 |
10.75 |
19.24 |
35.66 |
58.86 |
86.32 |
|
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 6 |
|
22 |
68 |
42 |
36 |
24 |
13 |
10.2 |
8.4 |
6.3 |
|
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 6 |
22 |
0.19 |
0.38 |
0.68 |
1.26 |
2.08 |
3.05 |
|
0.05 |
|
Dimensional drawing for Item: MSVG-68M
Click on the image to enlarge
Parts and accessories for Item: MSVG-68M
|
Description: MSVG mounting bracket M8 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: $10.08 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-E-M8 |
|
|---|
|
Description: MSVG mounting bracket M6 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: $9.66 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-D-M6 |
|
|---|
|
|
Sample Dimensional Drawing for Vacuum Regulators
|
|
|---|
