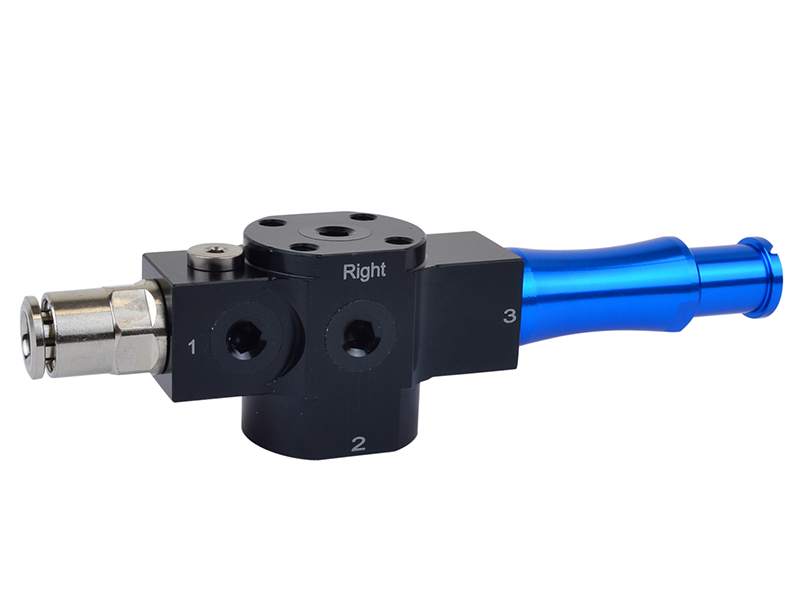

Item: MSVG-68HL - Multi-stage vacuum generator. 2.40 SCFM. 26.5 H... (Full Description below)
| |
Item#: MSVG-68HL
Price: $115.50 ea.
|
Multi-stage vacuum generator. 2.40 SCFM. 26.5 Hg. Low pressure (25-58 psi). Includes 4x M4 top, flush mount screws.
General Specifications
Vacuum Flow(SCFM): 2.2
Vacuum Port: G3/8"
Supply Port: 6mm tube
Air Consumption: 1.02
Max Vac -inHg": 26.5
Weight(lbs)": .1460
|
|
|
|
Additional Information
No additional information available for this item
CAD files for this Product
N/A
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 45 |
26.5 |
2.19 |
1.34 |
0.99 |
0.35 |
0.27 |
0.24 |
0.17 |
0.10 |
0.05 |
0.00 |
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
|
26.5 |
1.70 |
5.94 |
12.74 |
26.60 |
44.71 |
67.92 |
108.39 |
171.78 |
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 3.14 |
|
26.5 |
62 |
38 |
28 |
10 |
7.7 |
6.7 |
4.8 |
2.9 |
1.4 |
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 3.14 |
26.5 |
0.21 |
0.45 |
0.94 |
1.58 |
2.4 |
3.83 |
6.07 |
0.06 |
|
Dimensional drawing for Item: MSVG-68HL
Click on the image to enlarge
Parts and accessories for Item: MSVG-68HL
|
Description: MSVG mounting bracket M8 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: $10.08 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-E-M8 |
|
|---|
|
Description: MSVG mounting bracket M6 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: $9.66 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-D-M6 |
|
|---|
|
|
Sample Dimensional Drawing for Vacuum Regulators
|
|
|---|
