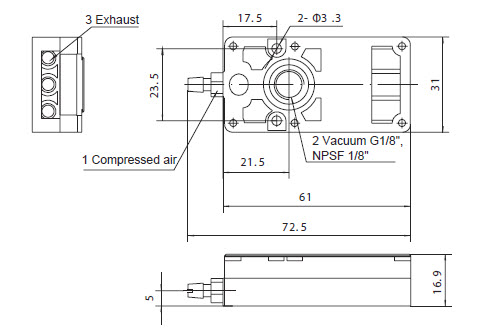

Home > Products > Vacuum Generators > VM10-NA Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VM10-NA - Mini multi stage vacuum generator. M5 air inlet,... (Full Description below) Item#: VM10-NA Price: $43.40 ea. Mini multi stage vacuum generator. M5 air inlet, 1/8 NPSF vacuum port. 2.46 scfm vacuum flow and 25.1 Hg General Specifications Vacuum Flow(SCFM): 2.5 Vacuum Port: 1/8" NPSF Supply Port: M5 Air Consumption: .99 Max Vac -inHg": 25 Weight(lbs)": 0.072 Additional Information CAD files for this Product N/A Vacuum flow(scfm at vac level)Evacuation time(s/cf to vac level)Vacuum flow(Nl/s at vac level)Evacuation time(s/l to vac level) Supply Press (PSI) Max Vacuum "Hg 0"Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 25.1 2.46 1.43 0.88 0.74 0.63 0.50 0.33 0.18 0.05 Supply Press (PSI) Max Vacuum "Hg 3"Hg 6"Hg 9"Hg 12"Hg 15"Hg 18"Hg 21"Hg 24"Hg 27"Hg 65 25.1 2.72 5.68 12.50 22.72 35.22 51.12 72.42 107.92 Supply Press (Bar) Air Cons L/min Max Vacuum "Hg 0 Kpa 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 28 25 70 40.5 25 21 18 14 9.5 5 1.3 Supply Press (Bar) Max Vacuum "Hg 10 Kpa 20 Kpa 30 Kpa 40 Kpa 50 Kpa 60 Kpa 70 Kpa 80 Kpa 90 Kpa 4.5 25.1 0.2 0.44 0.8 1.24 1.8 2.55 3.8 0.08 Dimensional drawing for Item: VM10-NA                                Click on the image to enlarge Parts and accessories for Item: VM10-NA                                Items: Bellows Suction Cups General Specifications Bellows vacuum suction cups handle objects with height differences and varying shape while supplying a lifting movement for separating thin materials. Materials: NBR, Silicone,Natural Rubber, Vinyl or Polyurethane See all Bellows Cups Sample Dimensional Drawing for Bellows Style Suction Cup Items: Flat Suction Cups General Specifications Flat vacuum cups are typically designed to handle flat or slightly curved surfaces. Available with or without cleats. Materials: NBR, Silicone or Polyurethane See all Flat Cups Sample Dimensional Drawing for Flat Style Suction Cup Items: Oval Suction Cups General Specifications Oval vacuum cups are ideal for handling narrow work pieces. Available in flat or bellows styles. Materials: NBR, Silicone or BENZ See all Oval Cups Sample Dimensional Drawing for Oval Style Suction Cup

---
