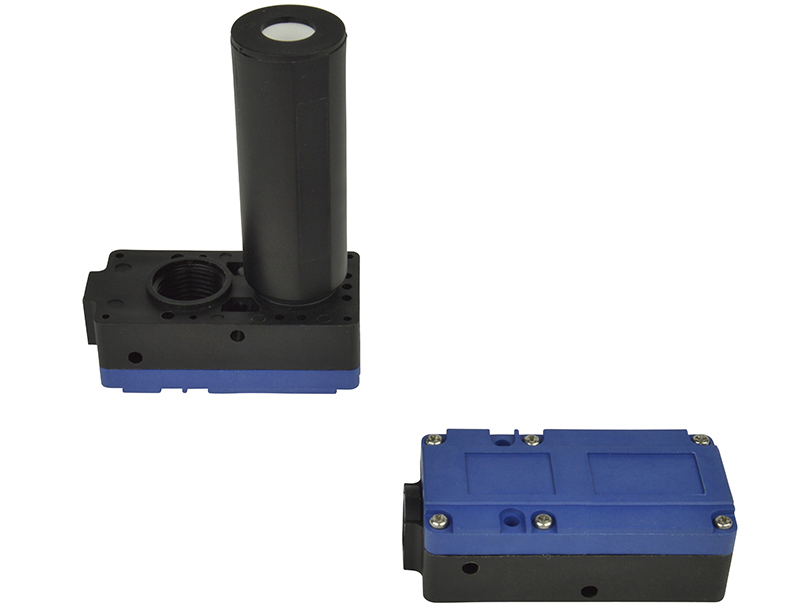

Item: VM10-NC - Mini multi stage vacuum generator. 1/8 NPSF air ... (Full Description below)
| |
Item#: VM10-NC
Price: $50.13 ea.
|
Mini multi stage vacuum generator. 1/8 NPSF air inlet with 3/8 NPSF vacuum port. 2.46 scfm vacuum flow and 25.1 Hg
General Specifications
Vacuum Flow(SCFM): 2.5
Vacuum Port: 3/8" NPSF
Supply Port: 1/8" NPSF
Air Consumption: .99
Max Vac -inHg": 25
Weight(lbs)": .08
 Recommended replacement for: M10A5-CN, M10L, M10, M10A6-CN
|
|
|
|
Additional Information
No additional information available for this item
CAD files for this Product
N/A
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 65 |
25.1 |
2.46 |
1.43 |
0.88 |
0.74 |
0.63 |
0.50 |
0.33 |
0.18 |
0.05 |
|
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 65 |
25.1 |
2.72 |
5.68 |
12.50 |
22.72 |
35.22 |
51.12 |
72.42 |
107.92 |
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 4.5 |
28 |
25 |
70 |
40.5 |
25 |
21 |
18 |
14 |
9.5 |
5 |
1.3 |
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 4.5 |
25.1 |
0.2 |
0.44 |
0.8 |
1.24 |
1.80 |
2.55 |
3.80 |
0.08 |
|

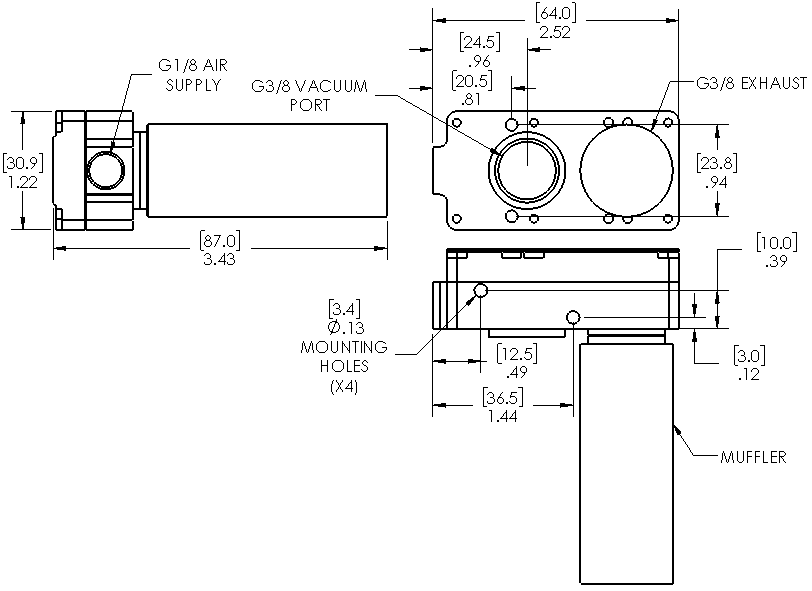

Dimensional drawing for Item: VM10-NC
Click on the image to enlarge
Parts and accessories for Item: VM10-NC
|
|

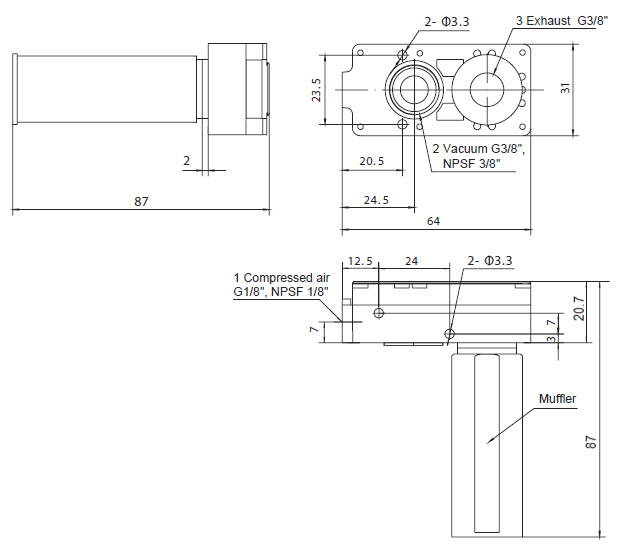

Sample Dimensional Drawing for Vacuum Regulators
|
|
|---|
