Quantity:
Item: 11 03 10 - Adjustable vacuum regulator, Operating Pressure, ... (Full Description below)
| | Item#: 11 03 10
Price: $811.43 ea.
|
Adjustable vacuum regulator, Operating Pressure, 6.3 Hg to 29.92 Hg, Max Flow of 12 SCFM
General Specifications
Port Size: G1/2"
Max Capacity SCFM(cum/h): 11.8
Pressure Gauge(not included): 09 03 10
Weight lbs(kg): 2.54 (1.15)
Adjustable vacuum regulator |
|
|
|
Additional Information *PRESSURE GAUGE, Item#:09 03 10 SOLD SEPARATELY
CAD files for this Product N/A

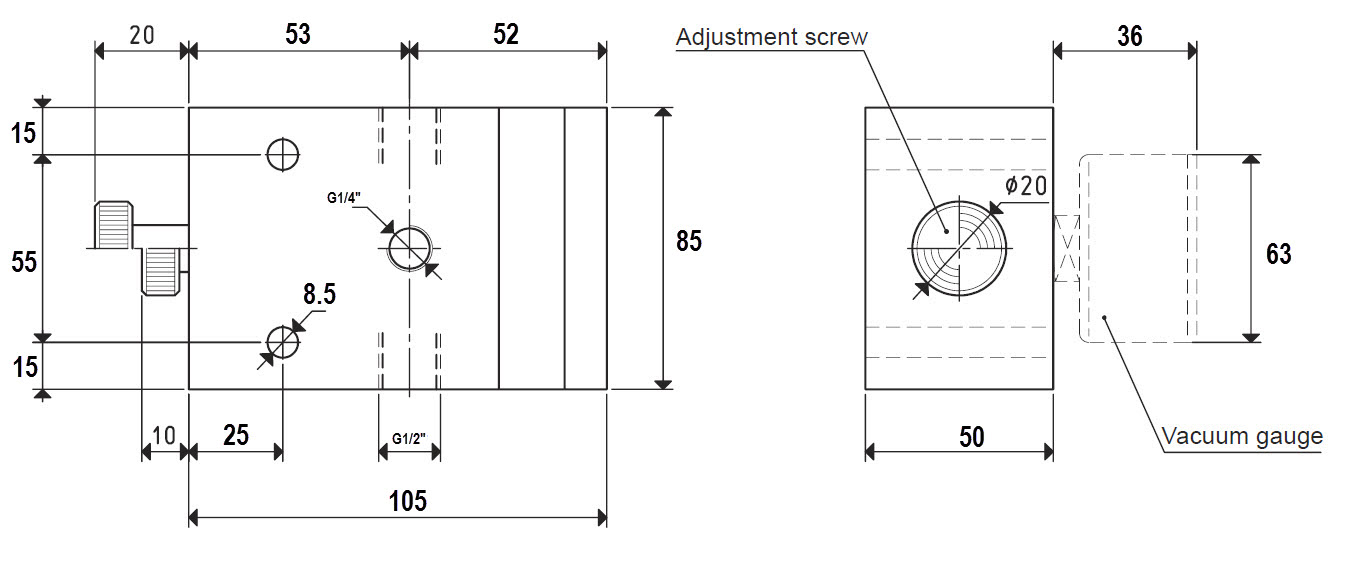

Dimensional drawing for Item: 11 03 10
Click on the image to enlarge
Suggested Parts and Accessories for Item: 11 03 10
|
|
Sample Dimensional Drawing for Vacuum Generators
|
|
|---|
|
