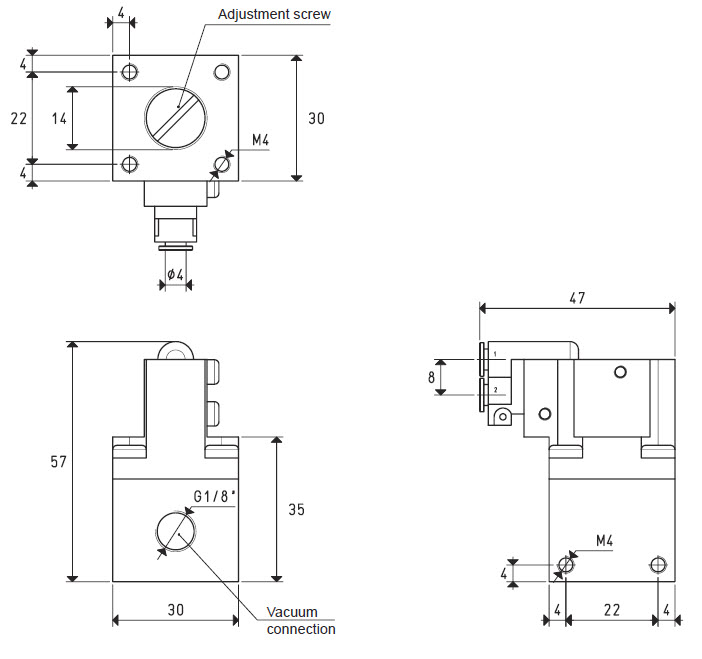

Home > Products > Vacuum Sensors > 12 01 30 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 12 01 30 - Normally closed mini pneumatic vacuum switch Item#: 12 01 30 Price: $354.68 ea. Normally closed mini pneumatic vacuum switch. Mini Pneumatic vacuum switch. General Specifications Type: Pneumatic Connection Thread: G1/8" Adjustment range -inHg: 1.5 - 27.5 Output: NC Hysteresis -inHg: 2 Product weight(lbs): 0.229 Additional Information sensor Dimensional drawing for Item: 12 01 30                                Click on the image to enlarge Parts and accessories for Item: 12 01 30                                Items: Bellows Suction Cups General Specifications Bellows vacuum suction cups handle objects with height differences and varying shape while supplying a lifting movement for separating thin materials. Materials: NBR, Silicone,Natural Rubber, Vinyl or Polyurethane See all Bellows Cups Sample Dimensional Drawing for Bellows Style Suction Cup Items: Flat Suction Cups General Specifications Flat vacuum cups are typically designed to handle flat or slightly curved surfaces. Available with or without cleats. Materials: NBR, Silicone or Polyurethane See all Flat Cups Sample Dimensional Drawing for Flat Style Suction Cup Items: Oval Suction Cups General Specifications Oval vacuum cups are ideal for handling narrow work pieces. Available in flat or bellows styles. Materials: NBR, Silicone or BENZ See all Oval Cups Sample Dimensional Drawing for Oval Style Suction Cup

---
