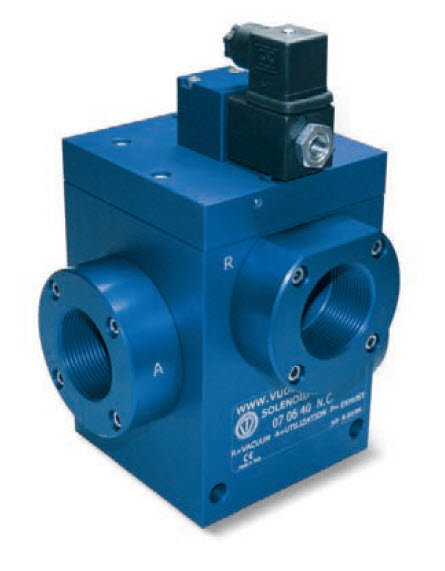

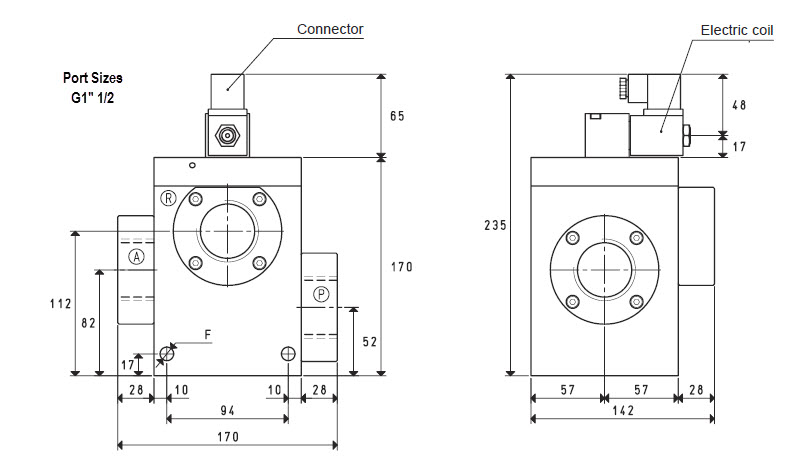

Home > Products > Vacuum Valves > 070640NC Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 070640NC - Direct Acting 3-Way Vacuum Solenoid Valves, Norma... (Full Description below) Item#: 070640NC Price: $1782.37 ea. Direct Acting 3-Way Vacuum Solenoid Valves, Normally Closed, SOLENOID AND CONNECTOR SOLD SEPARATELY General Specifications Valve Type: 3 way NC Port Size: G1-1/2" Orifice Size: 40 mm Max Capacity SCFM(cum/h): 105.9 Vacuum Level: 1-25 Hg" Configuration: 3 way Weight lbs: 13.00 Additional Information *SOLENOID AND CONNECTOR SOLD SEPARATELY Dimensional drawing for Item: 070640NC                                Click on the image to enlarge Parts and accessories for Item: 070640NC                                Item#: 00 07 03N 12 VDC coil for solenoid valve Compatible with Valve model: 070640NC General Specifications Product: Coil Voltage: 12 Volts DC Absorption: 16W Duty Cycle: 100% Weight lbs.(g): 0.22 (100) Price: $46.62 each Add to Cart Dimensional Drawing for 00 07 03N Item#: 00 07 04N 24VDC coil for solenoid valve Compatible with Valve model: 070640NC General Specifications Product: Coil Voltage: 24 Volts DC Absorption: 18W Duty Cycle: 100% Weight lbs.(g): 0.22 (100) Price: $46.62 each Add to Cart Dimensional Drawing for 00 07 04N Item#: 00 07 256N 24 VAC (50-60 Hz) coil for solenoid valve Compatible with Valve model: 070640NC General Specifications Product: Coil Voltage: 24 Volts AC 50-60 Hz Absorption: 16W Duty Cycle: 100% Weight lbs.(g): 0.22 (100) Price: $46.62 each Add to Cart Dimensional Drawing for 00 07 256N Item#: 00 07 258N 110 VAC (50-60 Hz) coil for solenoid valve Compatible with Valve model: 070640NC General Specifications Product: Coil Voltage: 110 Volts AC 50-60 Hz Absorption: 16W Duty Cycle: 100% Weight lbs.(g): 0.22 (100) Price: $46.62 each Add to Cart Dimensional Drawing for 00 07 258N Item#: 00 07 63 Standard connector for solenoid coils Compatible with Valve model: 070640NC General Specifications Product: Coil Connectors Operating Temp: -­40 to +90 Cable: 6mm - 8mm Weight lbs.(g): 0.053 Price: $8.23 each Add to Cart Dimensional Drawing for 00 07 63 Item#: 00 07 101 Standard connector with LED for solenoid coils Compatible with Valve model: 070640NC General Specifications Product: Coil Connectors Operating Temp: ­40 to +90 Cable: 6mm - 8mm Weight lbs.(g): 0.053 Price: $23.04 each Add to Cart Dimensional Drawing for 00 07 101 Item#: 00 07 186 Standard connector with LED and filter for solenoid coils Compatible with Valve model: 070640NC General Specifications Product: Coil Connectors Operating Temp: -­40 to +90 Cable: 6mm - 8mm Weight lbs.(g): 0.053 Price: $30.21 each Add to Cart Dimensional Drawing for 00 07 186
