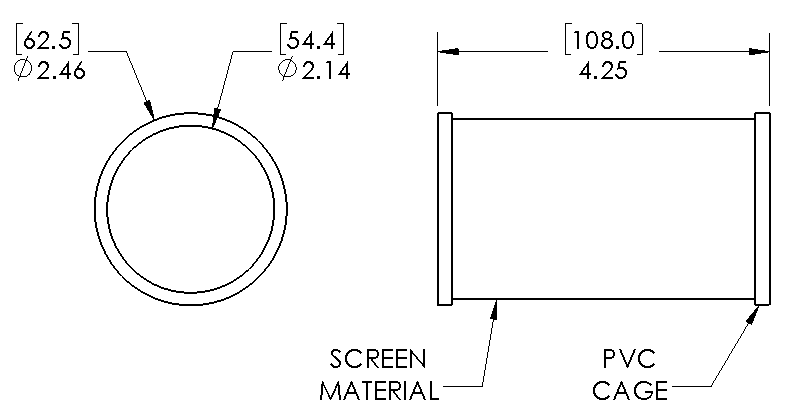

Dimensional drawing for Item: SE-L10-15M Click on the image to enlarge
Suggested Parts and Accessories for Item: SE-L10-15M
Item#: PLS-R38T-PCB-15M | 3/8 REG FNPT strainer with mounting tab. Poly top, Clear bowl, Buna gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Regular series in-line strainer
|
General Specifications
Type: Regular Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 17.33(Sq In)
Price: $29.93 each
Add to Cart
|
Dimensional Drawing for PLS-R38T-PCB-15M |
|
---|
Item#: PLS-R38T-PCV-15M | 3/8 REG FNPT strainer with mounting tab. Poly top, Clear bowl, Viton gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Regular series in-line strainer
|
General Specifications
Type: Regular Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: Viton (green)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 17.33(Sq In)
Price: $29.93 each
Add to Cart
|
Dimensional Drawing for PLS-R38T-PCV-15M |
|
---|
Item#: PLS-R38T-PCE-15M | 3/8 REG FNPT strainer with mounting tab. Poly top, Clear bowl, EPDM gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Regular series in-line strainer
|
General Specifications
Type: Regular Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: EPDM (red)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 17.33(Sq In)
Price: $29.93 each
Add to Cart
|
Dimensional Drawing for PLS-R38T-PCE-15M |
|
---|
Item#: PLS-L10F-NNB-15M | 1.0 LG FNPT strainer. Nylon top, Nylon bowl, Buna gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: White Nylon
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NNB-15M |
|
---|
Item#: PLS-L10F-NNE-15M | 1.0 LG FNPT strainer. Nylon top, Nylon bowl, EPDM gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: White Nylon
Gasket Material: EPDM (red)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NNE-15M |
|
---|
Item#: PLS-L10F-NNV-15M | 1.0 LG FNPT strainer. Nylon top, Nylon bowl, Viton gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: White Nylon
Gasket Material: Viton (green)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NNV-15M |
|
---|
Item#: PLS-L10F-PPB-15M | 1.0 LG FNPT strainer. Poly top, Poly bowl, Buna gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Black Poly
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PPB-15M |
|
---|
Item#: PLS-L10F-PPE-15M | 1.0 LG FNPT strainer. Poly top, Poly bowl, EPDM gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Black Poly
Gasket Material: EPDM (red)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PPE-15M |
|
---|
Item#: PLS-L10F-PPV-15M | 1.0 LG FNPT strainer. Poly top, Poly bowl, Viton gasket, REG series screen 165x800 mesh with 20 mesh backing. PVC ends. (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Black Poly
Gasket Material: Viton (green)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $57.20 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PPV-15M |
|
---|

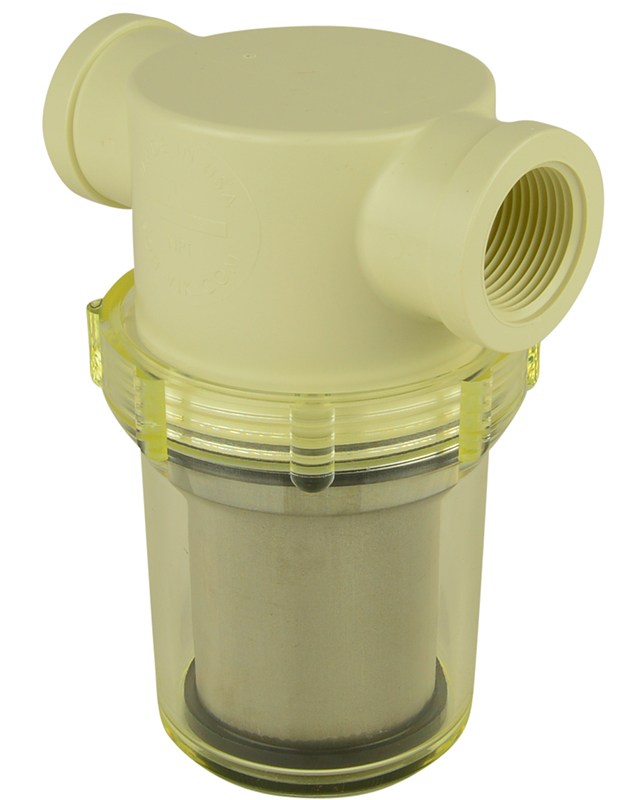

Item#: PLS-L10F-NCB-15M | 1 LG FNPT strainer. Nylon top, clear Nylon bowl, Buna gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $60.10 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NCB-15M |
|
---|
Item#: PLS-L10F-NCE-15M | 1 LG FNPT strainer. Nylon top, clear Nylon bowl, EPDM gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: EPDM (red)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $60.10 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NCE-15M |
|
---|
Item#: PLS-L10F-NCV-15M | 1 LG FNPT strainer. Nylon top, clear Nylon bowl, Viton gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: Viton (green)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $65.46 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-NCV-15M |
|
---|
Item#: PLS-L10F-PCB-15M | 1 LG FNPT strainer. Poly top, clear Nylon bowl, Buna gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $56.35 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PCB-15M |
|
---|
Item#: PLS-L10F-PCE-15M | 1 LG FNPT strainer. Poly top, clear Nylon bowl, EPDM gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: EPDM (red)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $56.35 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PCE-15M |
|
---|
Item#: PLS-L10F-PCV-15M | 1 LG FNPT strainer. Poly top, clear Nylon bowl, Viton gasket, 165x800 mesh screen (15 micron nominal) |
Large series in-line strainer
|
General Specifications
Type: Large Series
Top Material: Black Poly
Bowl Material: Clear Nylon
Gasket Material: Viton (green)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 29.73(Sq In)
Price: $61.68 each
Add to Cart
|
Dimensional Drawing for PLS-L10F-PCV-15M |
|
---|
|
