Quantity:
Item: PLS-L112F-NCB-15M - 1-1/2 FNPT Large Series Nylon Strainer with Clear... (Full Description below)
| | Item#: PLS-L112F-NCB-15M
Price: $60.10 ea.
|
1-1/2 FNPT Large Series Nylon Strainer with Clear Nylon Bowl, Buna gasket and SS Screen 165x800 mesh (15 micron nominal).
General Specifications
Use: Not for home use
Type: Large series in-line strainer
Connection Type: Female
Connection: 1-1/2"
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: Buna (black)
Mesh Screen: 165x800 Mesh (15 micron)
Filter Area: 38.27(Sq In)
Product Weight(lbs): 1.1 |
|
|
|
Additional Information
CAD files for this Product
N/A
Dimensional drawing for Item: PLS-L112F-NCB-15M
Click on the image to enlarge
Parts and accessories for Item: PLS-L112F-NCB-15M
|
Description: Large Series Clear Nylon bowl (gasket sold separately)
General Specifications
Type: Large Series
Material: Clear Nylon
Price: $15.50 each
Add to Cart
|
Dimensional Fitting Drawing for SB-L-CN |
|
|---|
|

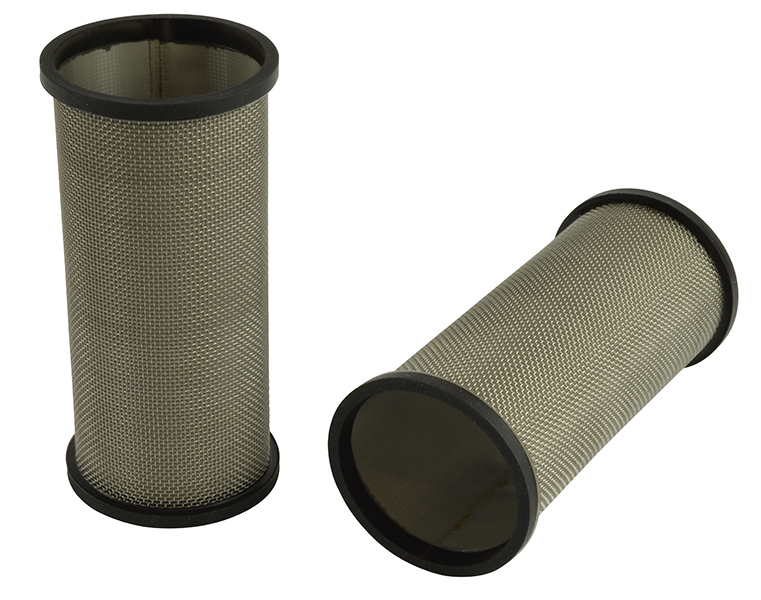

Description: 1-1/2 LG SS screen 165x800 mesh (15 micron nominal)
General Specifications
Type: 1-1/2" Large Series
Material: SS 304, PVC
Price: $29.80 each
Add to Cart
|

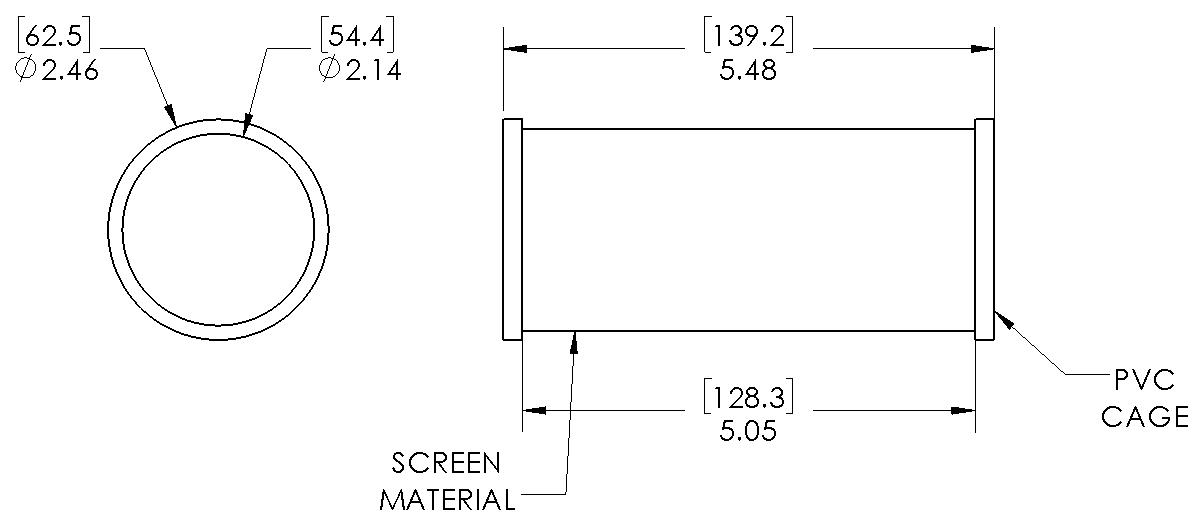

Dimensional Fitting Drawing for SE-L112-15M |
|
|---|
Replacement Gaskets Item#: SG-L-B |
Description: Large Series Buna gasket - Black. Sold individually.
General Specifications
Type: Large Series
Material: Buna
Price: $0.95 each
Add to Cart
|
Dimensional Fitting Drawing for SG-L-B |
|
|---|
|
Description: Mounting bracket for 1-1/2 inch Large Seriesfemale filters. Fits: PLS-L112 inline strainers. Fits PVF1.5 vacuum filters
General Specifications
Type: 1-1/2" Large Series
Material: Aluminum
Price: $14.12 each
Add to Cart
|
Dimensional Fitting Drawing for FMB-112 |
|
|---|
|
Description: 1-1/2 MPT X 1-1/2 HOSE BARB. NYLON. Sold individually
General Specifications
Type: 1-1/2" Large Series
Material: Nylon
Price: $4.03 each
Add to Cart
|
Dimensional Fitting Drawing for VA112 |
|
|---|
|
Description: 1-1/2 stainless steel hose clamp (1.0 - 2.0)
General Specifications
Type: 1-1/2" Large Series
Material: SS 304
Price: $1.73 each
Add to Cart
|
Dimensional Fitting Drawing for HC112 |
|
|---|
|
Description: 1-1/2 MPT X 2 HOSE BARB. NYLON. Sold individually
General Specifications
Type: 1-1/2" Large Series
Material: Nylon
Price: $12.59 each
Add to Cart
|
Dimensional Fitting Drawing for VA112-200 |
|
|---|
