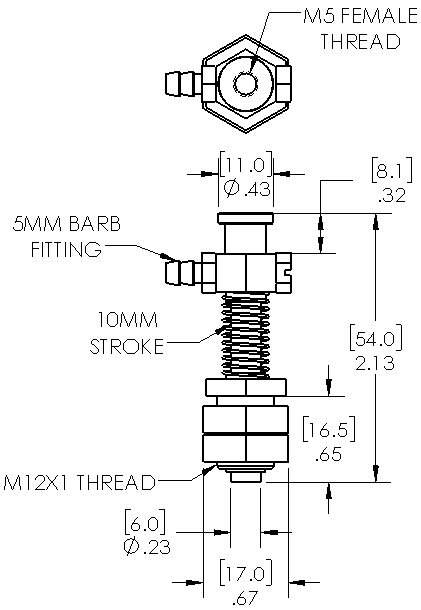

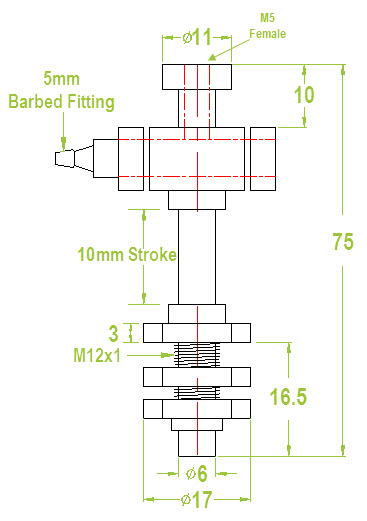

Home > Products > Level Compensators > LC12-H2-10 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: LC12-H2-10 - Small suspension. M12 mount. 10mm stroke Item#: LC12-H2-10 Price: $8.56 ea. Small suspension. M12 mount. 10mm stroke General Specifications Suction Cup Connection size: M5 female Vacuum Connection Size: Hose barb Size Stroke: 10 Anti Rotation: No Internal/External Spring: External Product Weight: .0930 Additional Information No additional information available for this item CAD files for this Product Dimensional drawing for Item: LC12-H2-10                                Click on the image to enlarge Suggested Parts and Accessories for Item: LC12-H2-10                                Items: Bellows Suction Cups General Specifications Bellows vacuum suction cups handle objects with height differences and varying shape while supplying a lifting movement for separating thin materials. Materials: NBR, Silicone,Natural Rubber, Vinyl or Polyurethane See all Bellows Cups Sample Dimensional Drawing for Bellows Style Suction Cup Items: Flat Suction Cups General Specifications Flat vacuum cups are typically designed to handle flat or slightly curved surfaces. Available with or without cleats. Materials: NBR, Silicone or Polyurethane See all Flat Cups Sample Dimensional Drawing for Flat Style Suction Cup Items: Oval Suction Cups General Specifications Oval vacuum cups are ideal for handling narrow work pieces. Available in flat or bellows styles. Materials: NBR, Silicone or BENZ See all Oval Cups Sample Dimensional Drawing for Oval Style Suction Cup
